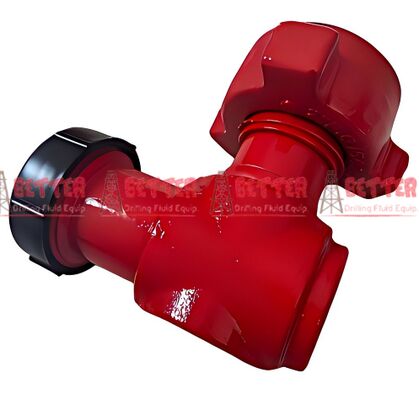

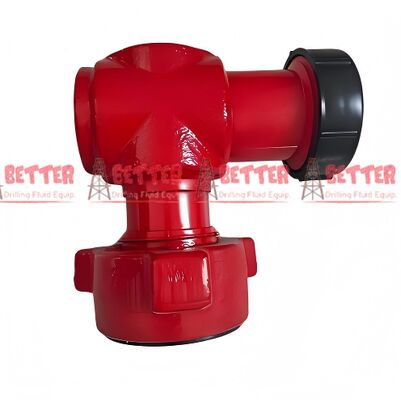

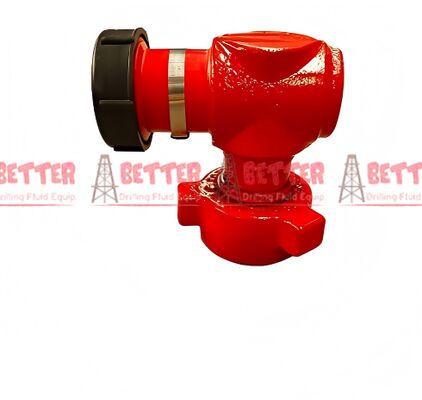

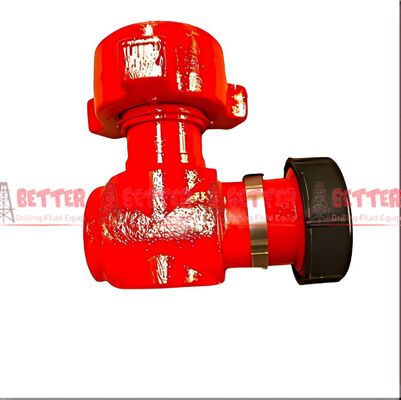

High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002

  • High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002
  • High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002
  • High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002
  • High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002
Место происхождения Китай
Фирменное наименование BETTER
Сертификация API 7K, 6A, 8C, ISO
Номер модели ЧИКСАН
Количество мин заказа 1 комплект
Цена OFFER
Упаковывая детали Коробка, случай переклейки
Время доставки 7-10 дней
Условия оплаты Т/Т, Западное соединение
Поставка способности Быстрая доставка, много запасов
Подробная информация о продукте
Материал Легированная сталь Стандартный API 6a
Номинальное давление до 20000psi Техника Кованый
Спецификация 1" - 4"
Оставьте сообщение
Характер продукции

With nearly two decades of experience,BETTER has delivered high-quality drilling fluid equipment and fittings to various industries.BETTER supplies a comprehensive range of high-pressure integral fittings and welded fittings, including Elbows, Tees, Crosses, Laterals, and Wyes, with sizes ranging from 2" to 4" and pressure ratings from 3000 psi to 20000 psi. Products can be combined to suit virtually any installation. Additionally, we provide union crossovers, pup joints, swivel joints, and steel loop hoses. Our Integral Fitting Wye Adapters and Y-type crossovers, part of the Integral Fittings family, are designed, produced, and tested in compliance with 6A and 16C standards. Our Hammer Union Crosses are interchangeable with major brands like FMC Weco.

Recommeded Servise
1.High Pressure well service flowline
2.Fracturing flowline
3.Well testing flowline
4.Cementing and circulating flowline

Feature
1.Wing union connections ensure fast, pressure-tight connections
2.Many end connection combination can be choosen
3.All are forged ones





Model

CWP

Psi

 End Connection Style 20 Style 30 Style 40 Style 50 Style 60 Style 70 Style 80 Style 10 Style 100
1” LS10 10000 Threaded CF 610537 N/A 3139546 CF N/A CF 3141454 N/A
1”LS15 15000 1502MXF CF 3259291 N/A 3139547 CF N/A P516135 3139550 CF
1.5”LS10 10000 Threaded P506047 CF N/A 3139779 CF N/A CF P501542 N/A
1.5”LS15 15000 1502MXF P510860 CF N/A 3139778 CF N/A P502504 3139781 3139780
2”LS10 10000 Threaded P523525 3139888 3139890 3139904 3144545 3139891 3139892 3139476 N/A
2”LS15 15000 1502MXF P514100 3144126 N/A 3139475 3144630 P505482 3139901 3139905 3144094
15000 1502MXM CF N/A N/A 3267203 6101559 N/A N/A 3139477 3139903
15000 1502FXF CF N/A N/A 3144000 P504952 N/A N/A P518960 CF
2”LS20 20000 2002MXF CF CF N/A 3144569 CF N/A CF 3144570 CF
20000 2002MXM CF P524579 N/A N/A P512325 N/A N/A 3144571 3144572
3” Tsi15 15000 1502MXF P505417 P505416 N/A P505327 P505420   P505409 P505325 P505410
3” Tsi20 20000 2002MXF CF CF N/A P527340 CF   P505326 P505326 P505411
4”Tsi10 10000 1002MXF P516092 P517487 N/A P516091 CF   3145134
4”Tsi15 15000 1502MXF P530256 CF N/A P527331 CF   P516093 3130501 P516094
High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002 0
High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002 1High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002 2

Company Profile

BETTER Drilling Fluid Solution Limited

was established in 2016, which is recognized as a qualified manufacturer and supplier of high-performance mission style centrifugal pumps, valves, flowline control products and oilfield equipment. Our products serves the onshore and offshore oil & gas drilling, water well drilling, chemical process sewage treatment, infrastructure, environmental, geotechnical, geothermal, HDD, and mineral exploration industries. All of our pump and products follows strict quality management system, from design, production, sale to after-sales. Our team has rich experience and knowledge to support our pump products to each region and markets. We understand what it takes to provide the best solutions in the drilling industries, as it is a 24-hour drilling industry where there is a great need for products with good quality and fast delivery of wear parts and /or service.

Our Factory

High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002 3High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002 4High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002 5

Packing And Shipping

High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002 6High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002 7

High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002 8

High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002 9

High Pressure Manifold Integral Elbow Fittings for Oilfield 2,3,4 Inch,Fig 602,1502,1002 10
